GMSH#
Since meshwell is a wrapper around GMSH, we will first review GMSH Python API. For a more thorough explanation of the below, see the GMSH documentation (https://gmsh.info/doc/texinfo/gmsh.html), tutorials (https://gitlab.onelab.info/gmsh/gmsh/-/tree/master/tutorials/python) and API (https://gitlab.onelab.info/gmsh/gmsh/-/blob/master/api/gmsh.py?ref_type=heads).
import gmsh
import meshio
from meshwell.visualization import plot2D
/home/runner/work/meshwell/meshwell/.venv/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
from .autonotebook import tqdm as notebook_tqdm

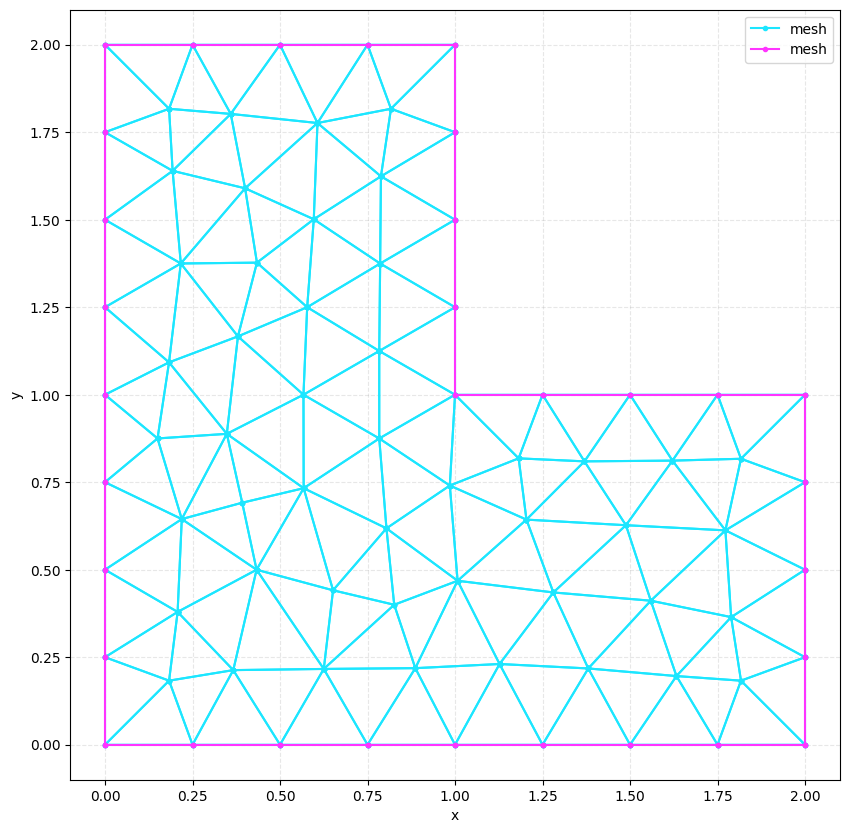

Bottom-up construction of CAD entities#
The most general way to create CAD entities in GMSH is “bottom-up”, going from points –> lines –> closed loops –> surfaces –> closed shells –> volumes
# Initialize GMSH
gmsh.initialize()
model = gmsh.model
model.add("bottom_up")
# Create points
p1 = model.occ.addPoint(0, 0, 0)
p2 = model.occ.addPoint(2, 0, 0)
p3 = model.occ.addPoint(2, 1, 0)
p4 = model.occ.addPoint(1, 1, 0)
p5 = model.occ.addPoint(1, 2, 0)
p6 = model.occ.addPoint(0, 2, 0)
# Create lines
l1 = model.occ.addLine(p1, p2)
l2 = model.occ.addLine(p2, p3)
l3 = model.occ.addLine(p3, p4)
l4 = model.occ.addLine(p4, p5)
l5 = model.occ.addLine(p5, p6)
l6 = model.occ.addLine(p6, p1)
# Create curve loop
cl = model.occ.addCurveLoop([l1, l2, l3, l4, l5, l6])
# Create surface
s1 = model.occ.addPlaneSurface([cl])
# Create the mesh
model.occ.synchronize()
model.mesh.generate(2)
gmsh.write("bottom_up.xao")
gmsh.write("bottom_up.msh")
gmsh.finalize()
# Read the mesh
mesh = meshio.read("bottom_up.msh")
Info : Meshing 1D...
Info : [ 0%] Meshing curve 1 (Line)
Info : [ 20%] Meshing curve 2 (Line)
Info : [ 40%] Meshing curve 3 (Line)
Info : [ 60%] Meshing curve 4 (Line)
Info : [ 70%] Meshing curve 5 (Line)
Info : [ 90%] Meshing curve 6 (Line)
Info : Done meshing 1D (Wall 0.000432707s, CPU 0.000698s)
Info : Meshing 2D...
Info : Meshing surface 1 (Plane, Frontal-Delaunay)
Info : Done meshing 2D (Wall 0.00438844s, CPU 0.004334s)
Info : 79 nodes 162 elements
Info : Writing 'bottom_up.xao'...
Info : Done writing 'bottom_up.xao'
Info : Writing 'bottom_up.msh'...
Info : Done writing 'bottom_up.msh'
try:
gmsh.initialize()
gmsh.open("bottom_up.xao")
gmsh.fltk.run()
except: # noqa: E722
print("Skipping CAD GUI visualization - only available when running locally")
Info : Reading 'bottom_up.xao'...
Info : Done reading 'bottom_up.xao'
Skipping CAD GUI visualization - only available when running locally
Error : Can't open display: (FLTK internal error)
try:
gmsh.initialize()
gmsh.open("bottom_up.msh")
gmsh.fltk.run()
except: # noqa: E722
print("Skipping mesh GUI visualization - only available when running locally")
Info : Reading 'bottom_up.msh'...
Info : 13 entities
Info : 79 nodes
Info : 162 elements
Info : Done reading 'bottom_up.msh'
Skipping mesh GUI visualization - only available when running locally
Warning : Gmsh has aleady been initialized
Error : Can't open display: (FLTK internal error)
plot2D(mesh, wireframe=True)

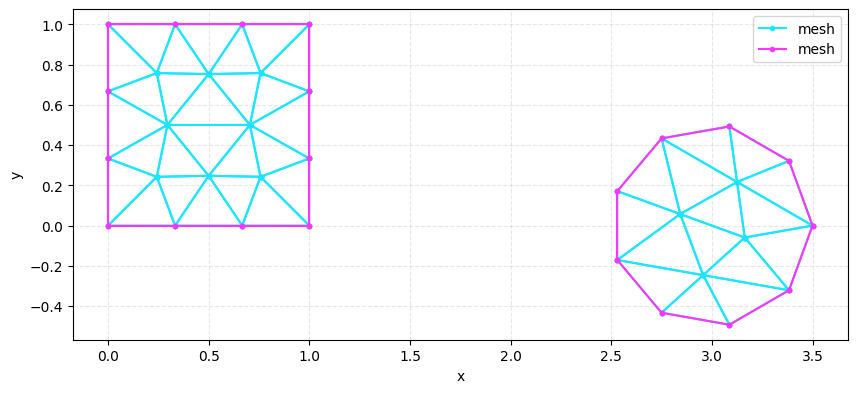

Construction of CAD entities from primitives#
A limited set of primitives (rectangles, circles, arcs, spheres, boxes, etc.) are also already implemented in GMSH:
gmsh.initialize()
model = gmsh.model
model.add("bottom_up")
# Create rectangle
box = model.occ.addRectangle(0, 0, 0, 1, 1)
# Create circle
circle = model.occ.addDisk(3, 0, 0, 0.5, 0.5)
# Create the mesh
model.occ.synchronize()
model.mesh.generate(2)
gmsh.write("primitives.msh")
gmsh.finalize()
Info : Meshing 1D...
Info : [ 0%] Meshing curve 1 (Line)
Info : [ 30%] Meshing curve 2 (Line)
Info : [ 50%] Meshing curve 3 (Line)
Info : [ 70%] Meshing curve 4 (Line)
Info : [ 90%] Meshing curve 5 (Ellipse)
Info : Done meshing 1D (Wall 0.000469897s, CPU 0.000594s)
Info : Meshing 2D...
Info : [ 0%] Meshing surface 1 (Plane, Frontal-Delaunay)
Info : [ 60%] Meshing surface 2 (Plane, Frontal-Delaunay)
Info : Done meshing 2D (Wall 0.0029479s, CPU 0.00301s)
Info : 33 nodes 67 elements
Info : Writing 'primitives.msh'...
Warning : Gmsh has aleady been initialized
Info : Done writing 'primitives.msh'
mesh = meshio.read("primitives.msh")
plot2D(mesh, wireframe=True)

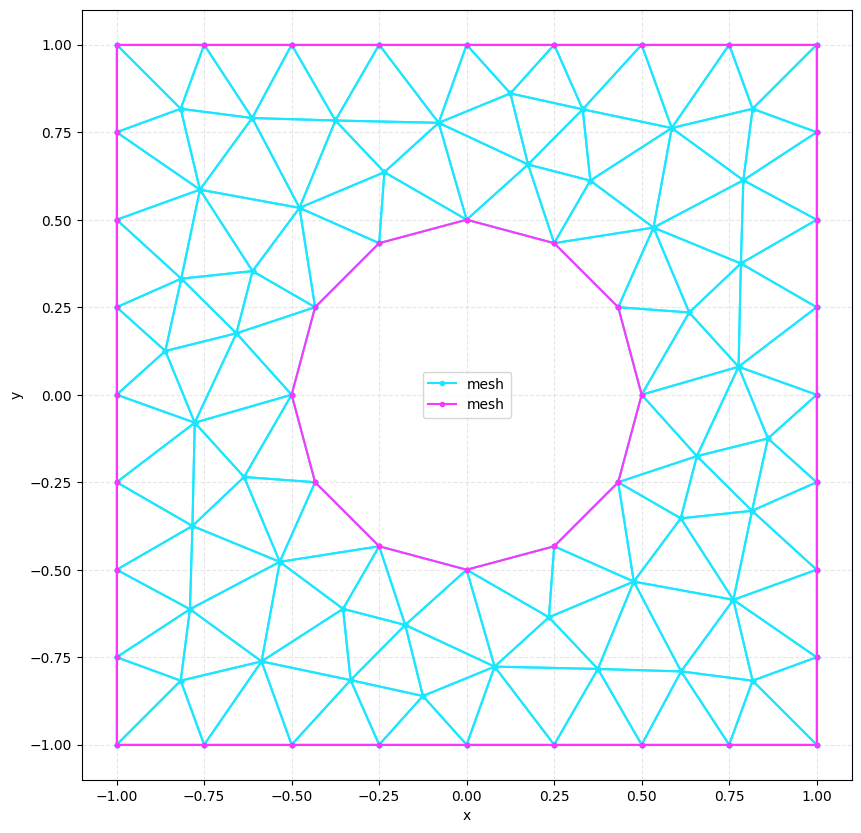

Constructive geometry operations#
More complex elementary entities can also be created from constructive geometry operations (cut, fuse, intersect):
gmsh.initialize()
model = gmsh.model
model.add("bottom_up")
# Create rectangle
box = model.occ.addRectangle(-1, -1, 0, 2, 2)
# Create circle
circle = model.occ.addDisk(0, 0, 0, 0.5, 0.5)
# Keep difference, delete originals
difference = model.occ.cut(
[(2, box)], [(2, circle)], removeObject=True, removeTool=True
)
# Create the mesh
model.occ.synchronize()
model.mesh.generate(2)
gmsh.write("booleans.msh")
gmsh.finalize()
Info : [ 0%] Difference
Info : [ 10%] Difference
Info : [ 20%] Difference
Info : [ 30%] Difference - Performing Face-Face intersection
Info : [ 70%] Difference - Performing intersection of shapes
Info : [ 80%] Difference - Making faces
Info : [ 90%] Difference - Adding holes
Info : Meshing 1D...
Info : [ 0%] Meshing curve 5 (Ellipse)
Info : [ 30%] Meshing curve 6 (Line)
Info : [ 50%] Meshing curve 7 (Line)
Info : [ 70%] Meshing curve 8 (Line)
Info : [ 90%] Meshing curve 9 (Line)
Info : Done meshing 1D (Wall 0.000413125s, CPU 0.000404s)
Info : Meshing 2D...
Info : Meshing surface 1 (Plane, Frontal-Delaunay)
Info : Done meshing 2D (Wall 0.00184721s, CPU 0.001877s)
Info : 88 nodes 181 elements
Info : Writing 'booleans.msh'...
Info : Done writing 'booleans.msh'
mesh = meshio.read("booleans.msh")
plot2D(mesh, wireframe=True)

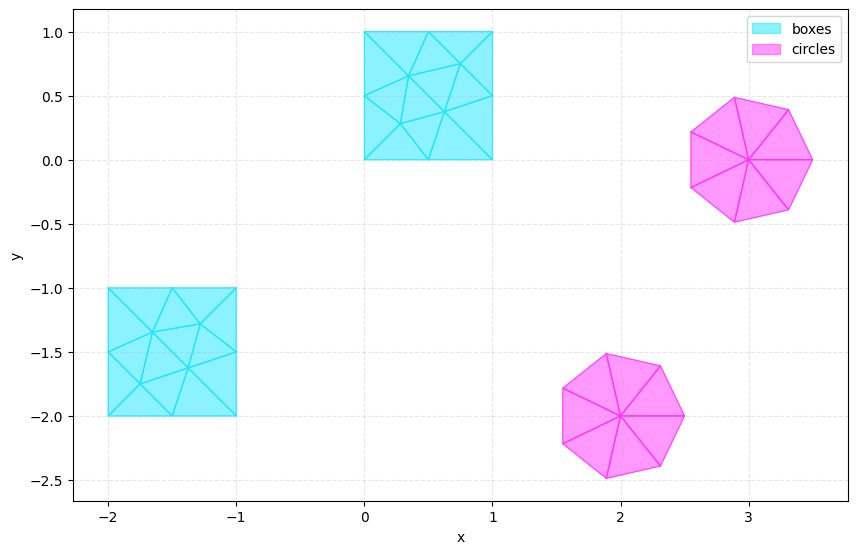

Physical entities#
It is almost always extremely useful to be able to refer to all of the mesh nodes within a set of elementary entities. In GMSH, this is achieved by assigning a “physical” group to a set of elementary entities:
gmsh.initialize()
model = gmsh.model
model.add("physicals")
# Create rectangle
box1 = model.occ.addRectangle(0, 0, 0, 1, 1)
box2 = model.occ.addRectangle(-2, -2, 0, 1, 1)
# Create circle
circle1 = model.occ.addDisk(3, 0, 0, 0.5, 0.5)
circle2 = model.occ.addDisk(2, -2, 0, 0.5, 0.5)
model.occ.synchronize()
# Create physical groups
model.addPhysicalGroup(2, [box1, box2], tag=1, name="boxes")
model.addPhysicalGroup(2, [circle1, circle2], tag=2, name="circles")
# Create the mesh
model.occ.synchronize()
model.mesh.generate(2)
gmsh.write("physicals.msh")
gmsh.finalize()
Info : Meshing 1D...
Info : [ 0%] Meshing curve 1 (Line)
Info : [ 20%] Meshing curve 2 (Line)
Info : [ 30%] Meshing curve 3 (Line)
Info : [ 40%] Meshing curve 4 (Line)
Info : [ 50%] Meshing curve 5 (Line)
Info : [ 60%] Meshing curve 6 (Line)
Info : [ 70%] Meshing curve 7 (Line)
Info : [ 80%] Meshing curve 8 (Line)
Info : [ 90%] Meshing curve 9 (Ellipse)
Info : [100%] Meshing curve 10 (Ellipse)
Info : Done meshing 1D (Wall 0.00106629s, CPU 0.001368s)
Info : Meshing 2D...
Info : [ 0%] Meshing surface 1 (Plane, Frontal-Delaunay)
Info : [ 30%] Meshing surface 2 (Plane, Frontal-Delaunay)
Info : [ 60%] Meshing surface 3 (Plane, Frontal-Delaunay)
Info : [ 80%] Meshing surface 4 (Plane, Frontal-Delaunay)
Info : Done meshing 2D (Wall 0.00379711s, CPU 0.003882s)
Info : 40 nodes 82 elements
Info : Writing 'physicals.msh'...
Info : Done writing 'physicals.msh'
mesh = meshio.read("physicals.msh")
plot2D(mesh, ignore_lines=True)
The sharp bits#
Conflicting entities#
When adding elementary entities, overlaps and interfaces are not “merged” by default: the entities will overlap and will be meshed separately. The resulting sub-meshes will not be connected.
Keeping track of integers#
Whenever entities are created / transformed (e.g. when healing interfaces), there can be reassignment of the integer tags used to label them. In the official tutorials, entity tags are re-identified based on some characteristic like bounding extent to later assign to physical groups.
