Specifying resolutions#
When defining entities, ResolutionSpecs can be attached to control the mesh size within or near the entity and its boundaries.
from collections import OrderedDict
import shapely
from meshwell.cad import cad
from meshwell.mesh import mesh
from meshwell.polysurface import PolySurface
from meshwell.resolution import ConstantInField, ExponentialField, ThresholdField
from meshwell.visualization import plot2D
Default characteristic length#
When creating a Model mesh, default_characteristic_length is used to set the default mesh size.
box1 = shapely.box(0, 0, 10, 10)
box2 = shapely.box(2, 2, 4, 4)
box3 = shapely.box(8, 4, 12, 6)
boxes = OrderedDict()
boxes["box3"] = box3
boxes["box2"] = box2
boxes["box1"] = box1
polysurfaces = []
for i, (box_name, box) in enumerate(boxes.items()):
polysurfaces.append(
PolySurface(
polygons=box,
physical_name=box_name,
mesh_order=i,
)
)
cad(
entities_list=polysurfaces,
output_file="model.xao",
)
Info : Clearing all models and views...
Info : Done clearing all models and views
Info : [ 0%] Difference
Info : [ 10%] Difference - Performing intersection of shapes
Info : [ 80%] Difference - Building splits of containers
Info : [ 0%] Fragments
Info : [ 10%] Fragments - Performing intersection of shapes
Info : [ 80%] Fragments - Building splits of containers
Info : [ 0%] Fragments
Info : [ 10%] Fragments - Performing intersection of shapes
Info : [ 80%] Fragments - Building splits of containers
Info : [ 0%] Difference
Info : [ 10%] Difference
Info : [ 20%] Difference
Info : [ 30%] Difference
Info : [ 40%] Difference
Info : [ 50%] Difference
Info : [ 60%] Difference
Info : [ 70%] Difference - Filling splits of edges
Info : [ 80%] Difference - Making faces
Info : [ 90%] Difference - Adding holes
Info : [ 0%] Fragments
Info : [ 10%] Fragments
Info : [ 20%] Fragments
Info : [ 30%] Fragments
Info : [ 40%] Fragments
Info : [ 50%] Fragments
Info : [ 60%] Fragments
Info : [ 70%] Fragments
Info : [ 80%] Fragments - Splitting faces
Info : [ 0%] Fragments
Info : [ 10%] Fragments
Info : [ 20%] Fragments
Info : [ 30%] Fragments
Info : [ 40%] Fragments
Info : [ 60%] Fragments
Info : [ 70%] Fragments
Info : [ 80%] Fragments - Splitting faces
Info : Writing 'model.xao'...
Info : Done writing 'model.xao'

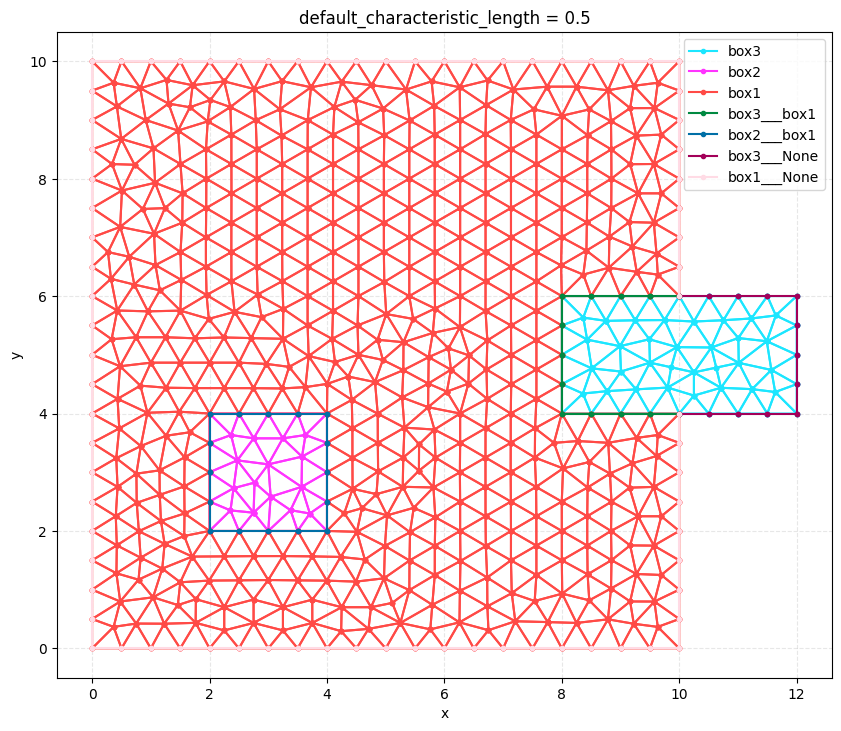

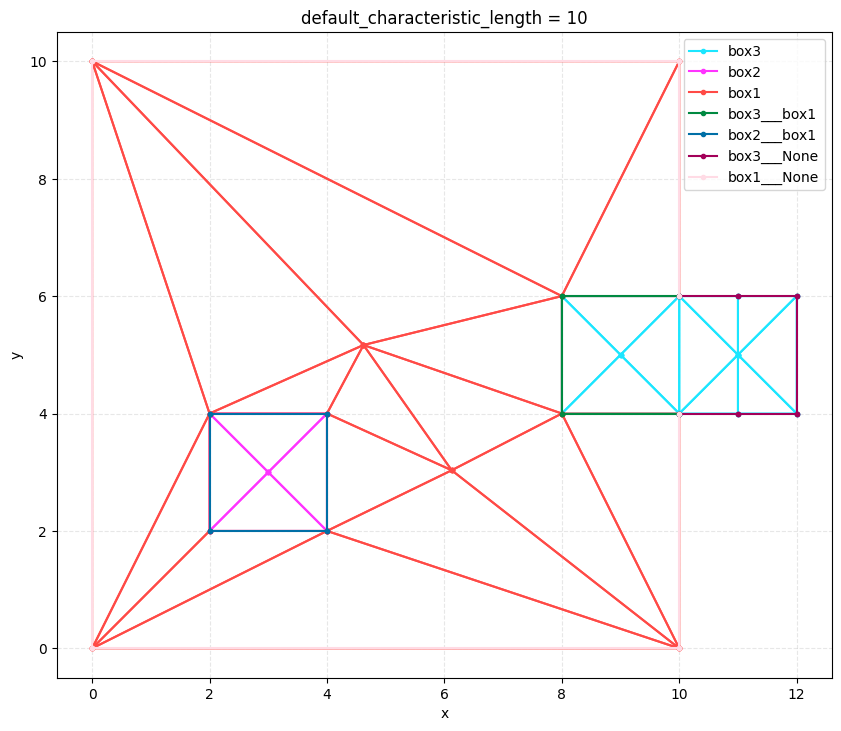

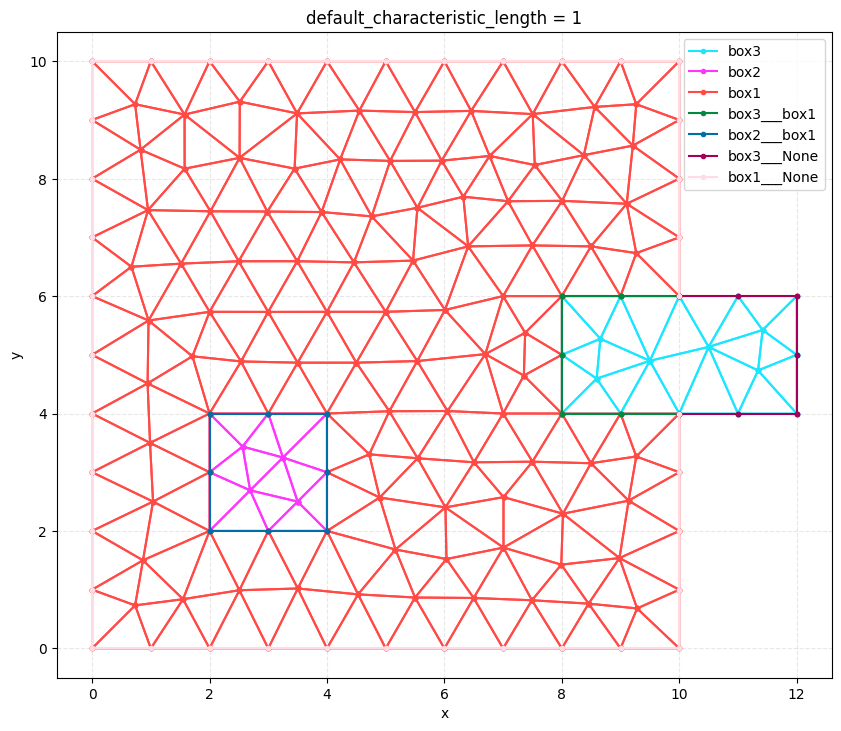

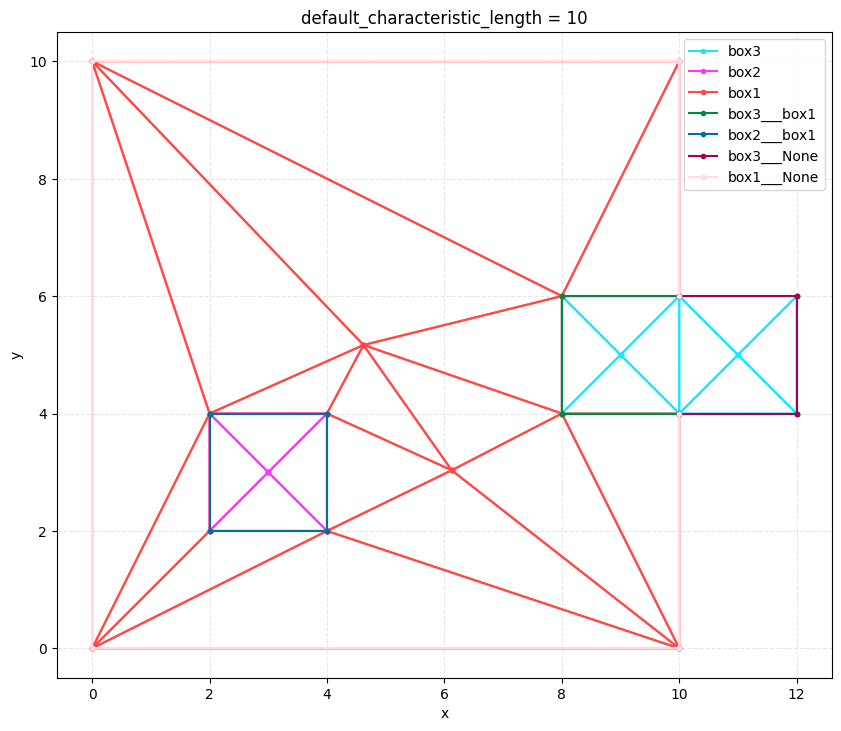

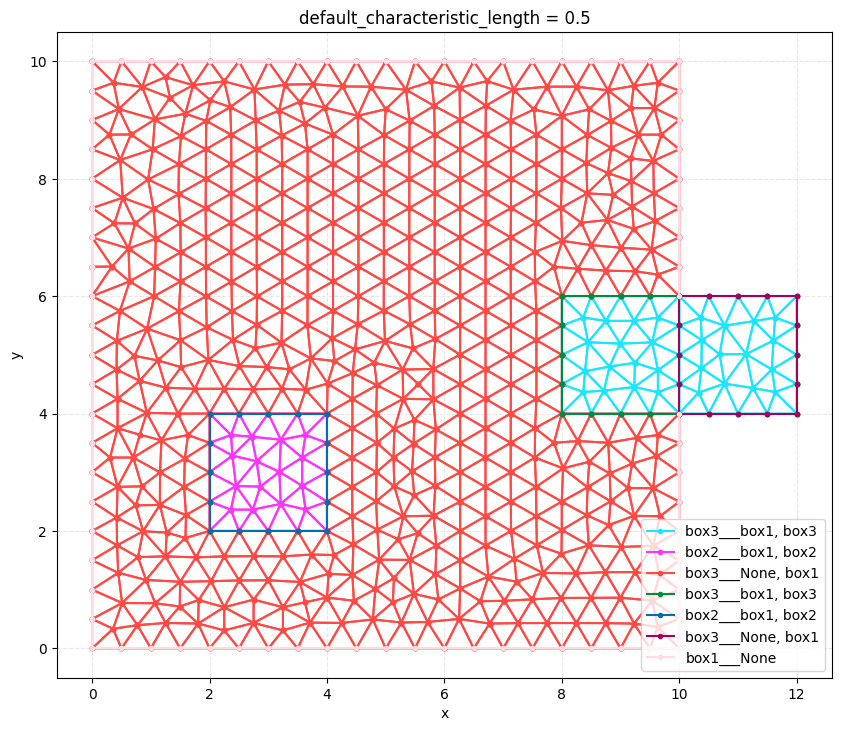

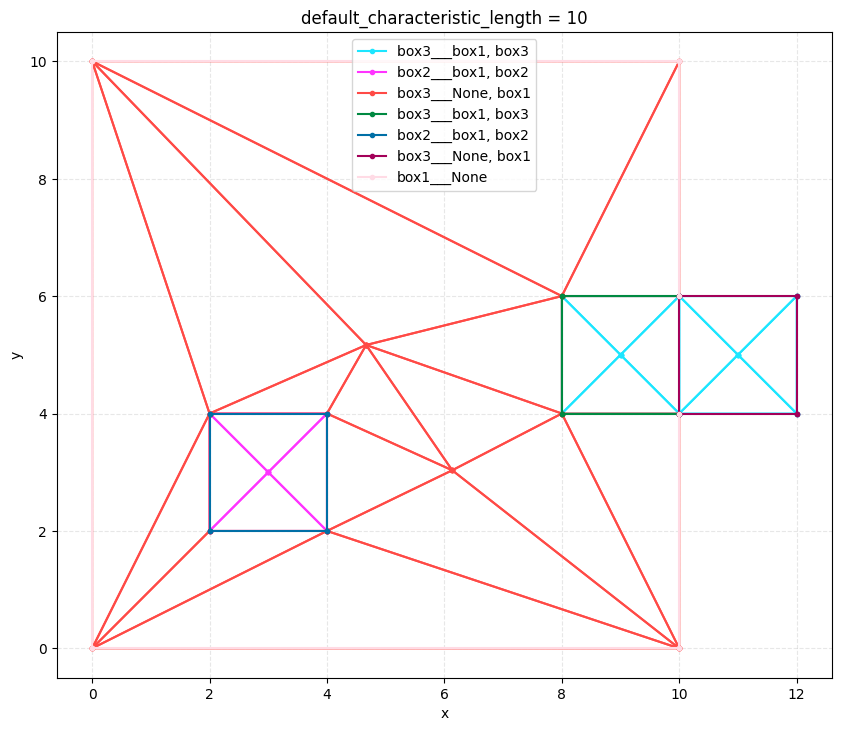

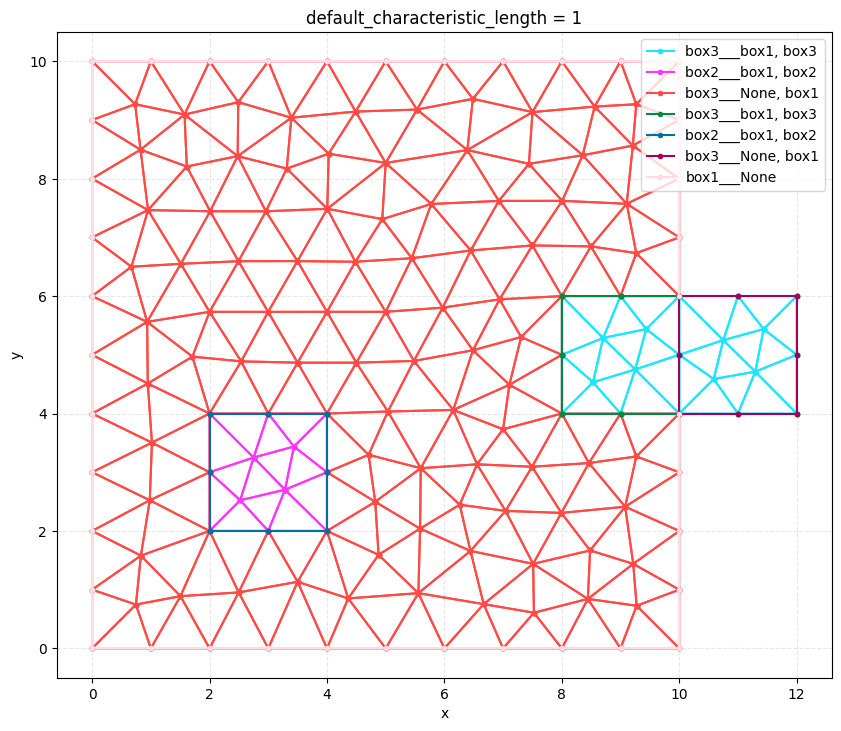

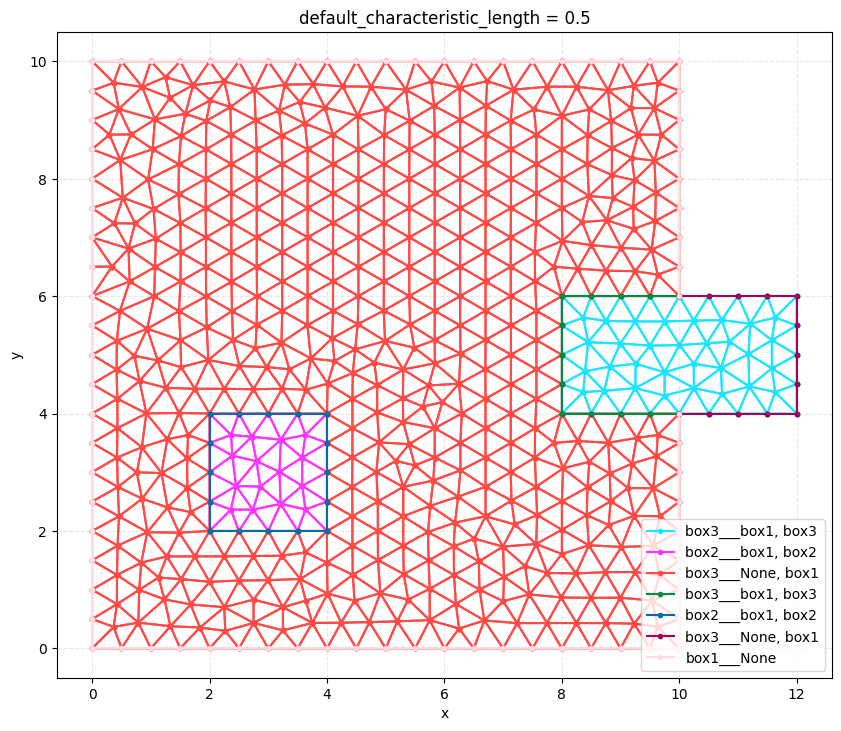

for default_characteristic_length in [10, 1, 0.5]:
output_mesh = mesh(
dim=2,
input_file="model.xao",
output_file="default_resolution.msh",
n_threads=1,
default_characteristic_length=default_characteristic_length,
)
plot2D(
output_mesh,
title=f"default_characteristic_length = {default_characteristic_length}",
wireframe=True,
)
Info : Clearing all models and views...
Info : Done clearing all models and views
Info : Reading 'model.xao'...
Info : Done reading 'model.xao'
Info : Clearing all models and views...
Info : Done clearing all models and views
Info : Reading 'model.xao'...
Info : Done reading 'model.xao'
Info : Clearing all models and views...
Info : Done clearing all models and views
Info : Reading 'model.xao'...
Info : Done reading 'model.xao'

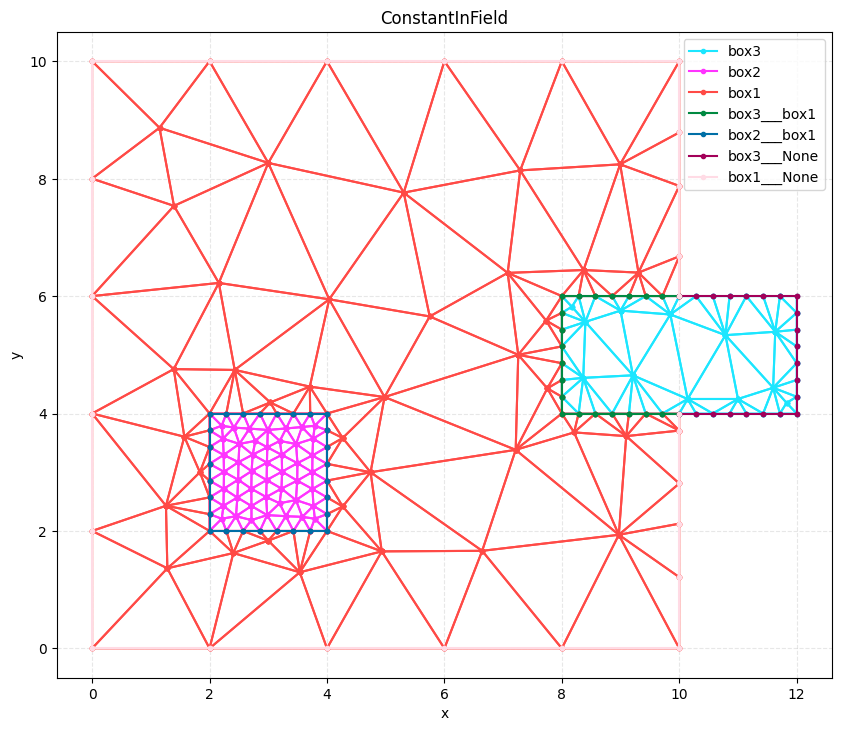

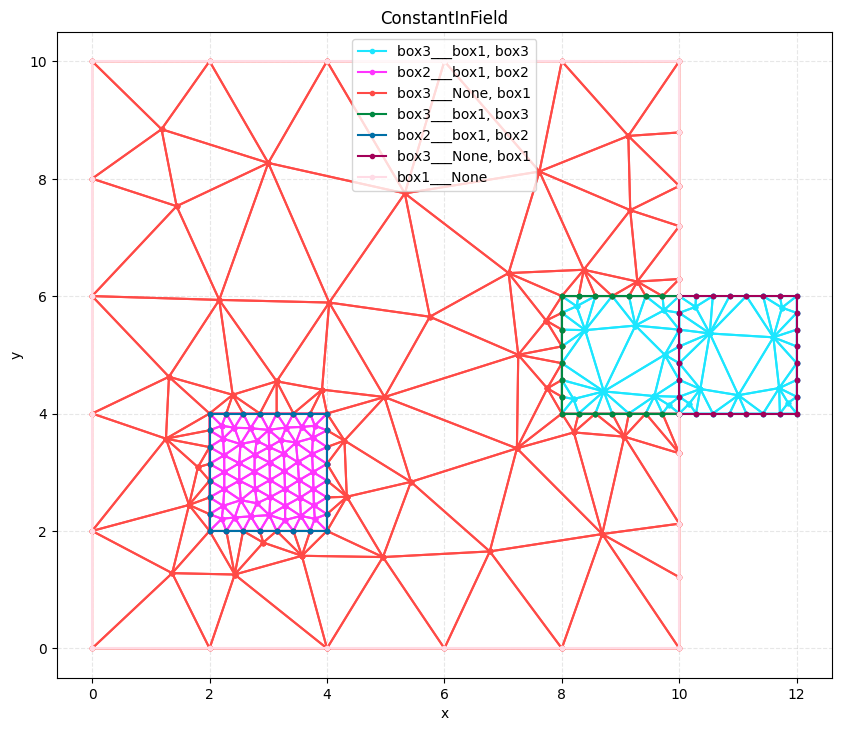

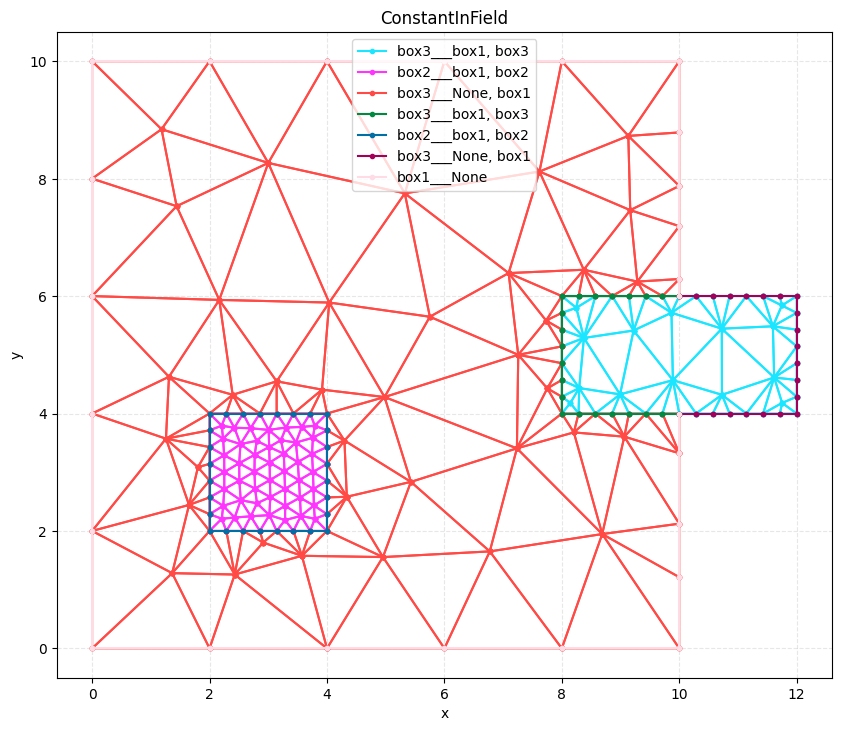

Constant Resolution#
Constant resolution can be assigned within entities or their boundaries using ConstantInField specification.
output_mesh = mesh(
dim=2,
input_file="model.xao",
output_file="constant_resolution.msh",
n_threads=1,
default_characteristic_length=2,
resolution_specs={
"box2": [ConstantInField(resolution=0.3, apply_to="surfaces")],
"box3": [ConstantInField(resolution=0.3, apply_to="curves")],
},
)
plot2D(output_mesh, title="ConstantInField", wireframe=True)
Info : Clearing all models and views...
Info : Done clearing all models and views
Info : Reading 'model.xao'...
Info : Done reading 'model.xao'

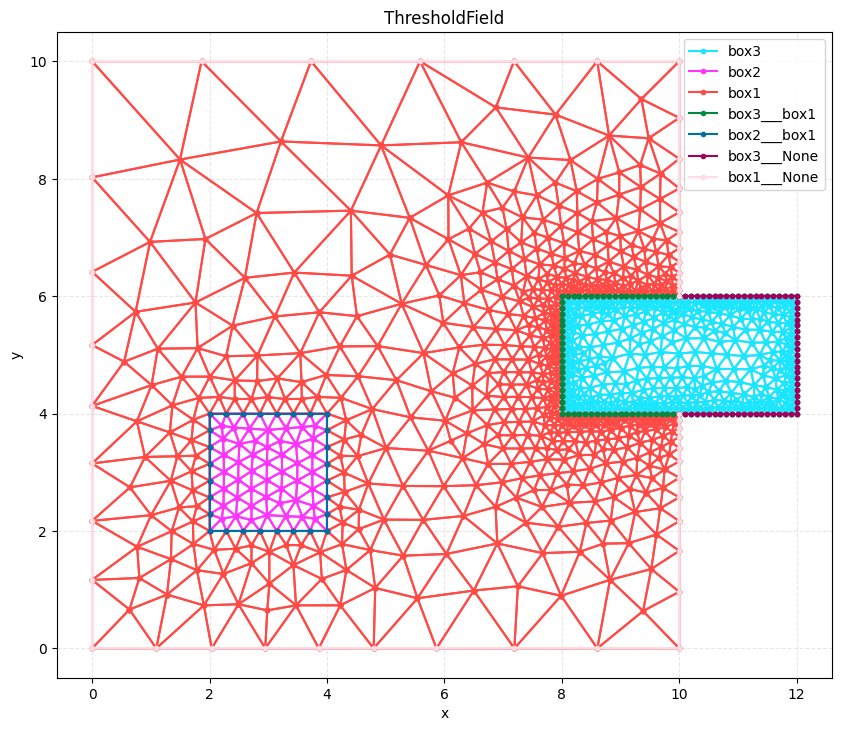

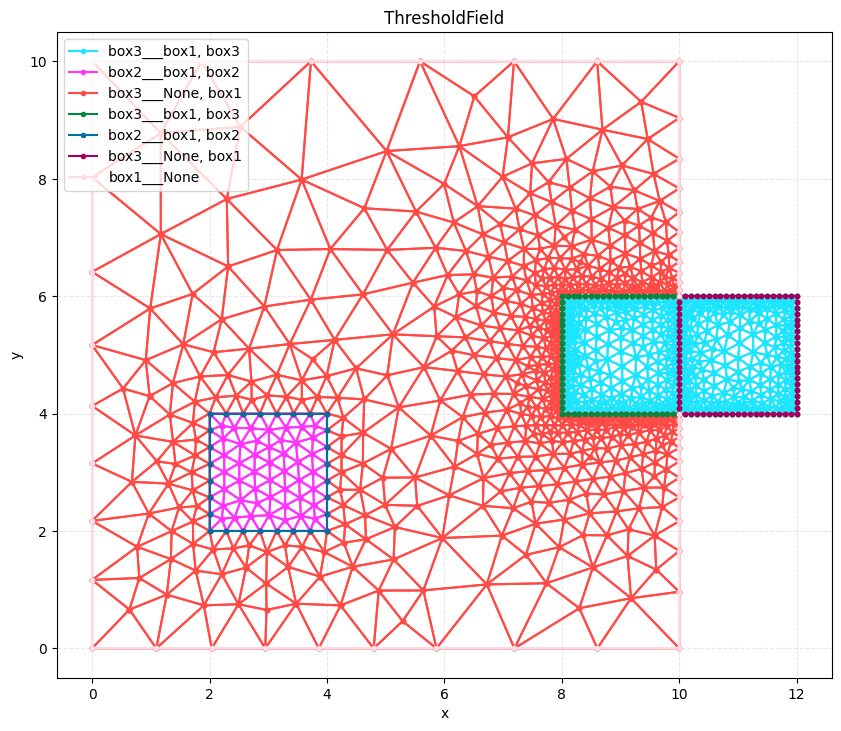

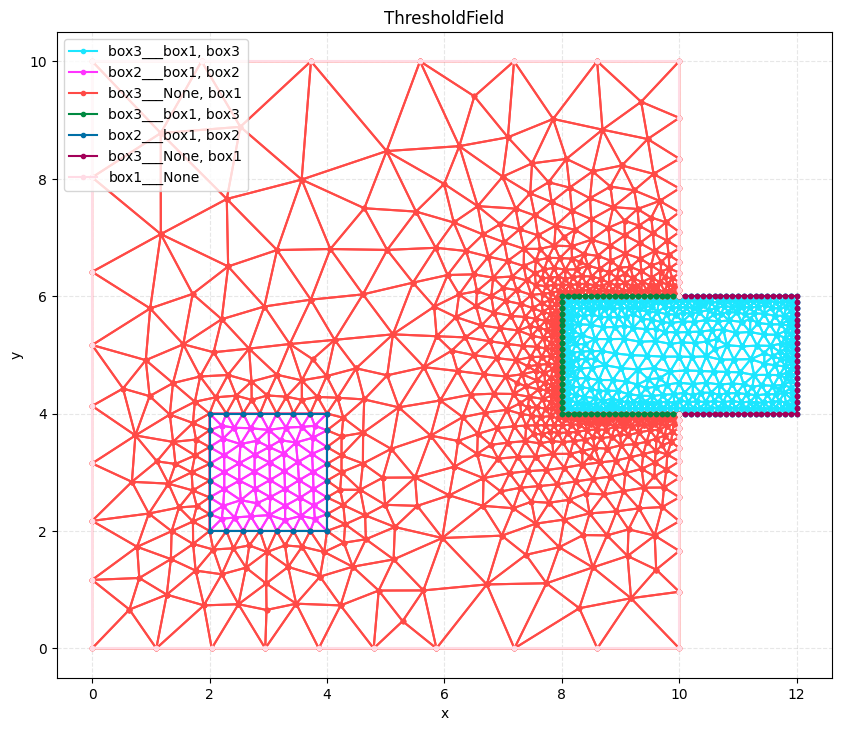

Threshold-based Resolution#
This creates a mesh that transitions from fine resolution near boundaries to coarse resolution away from them
output_mesh = mesh(
dim=2,
input_file="model.xao",
output_file="threshold_resolution.msh",
n_threads=1,
default_characteristic_length=2,
resolution_specs={
"box2": [
ThresholdField(sizemin=0.3, distmax=5, sizemax=2.0, apply_to="curves"),
ConstantInField(resolution=0.3, apply_to="surfaces"),
],
"box3": [
ThresholdField(sizemin=0.1, distmax=2, sizemax=0.5, apply_to="curves"),
ThresholdField(
sizemin=0.5, distmax=5, sizemax=2, distmin=2, apply_to="curves"
),
],
},
)
plot2D(output_mesh, title="ThresholdField", wireframe=True)
Info : Clearing all models and views...
Info : Done clearing all models and views
Info : Reading 'model.xao'...
Info : Done reading 'model.xao'

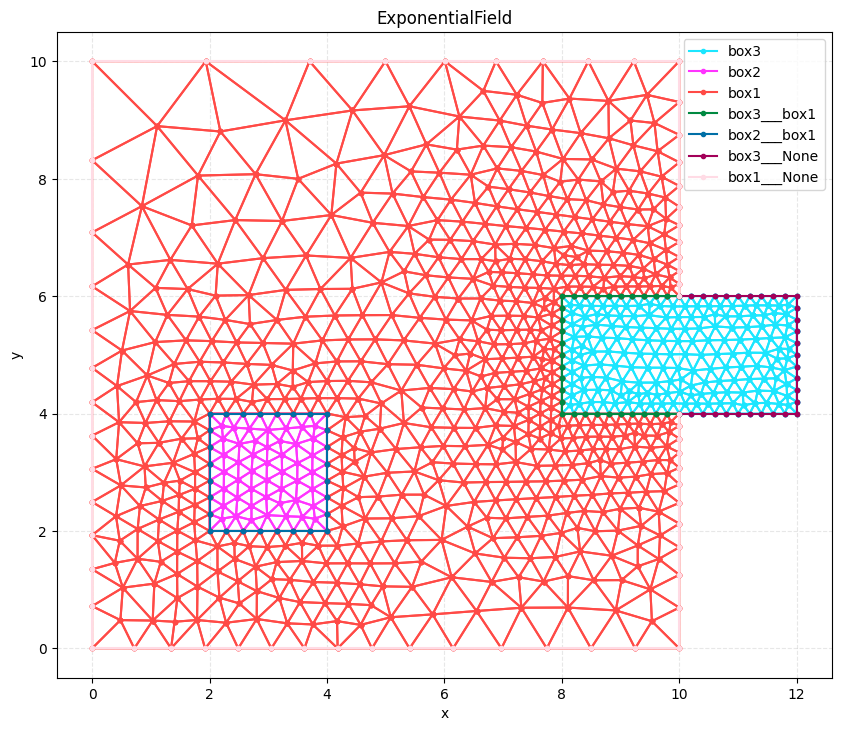

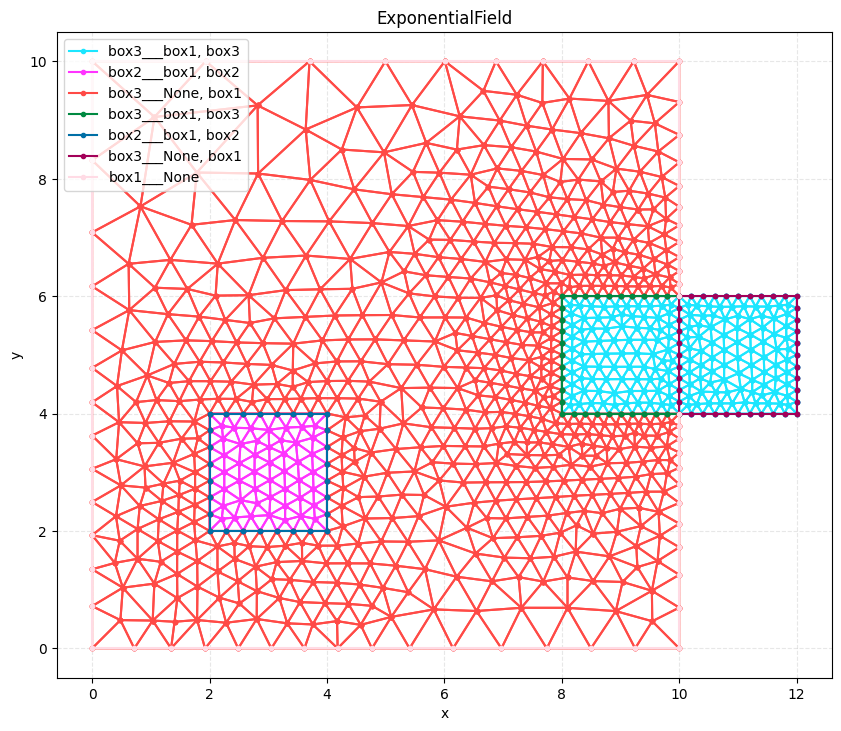

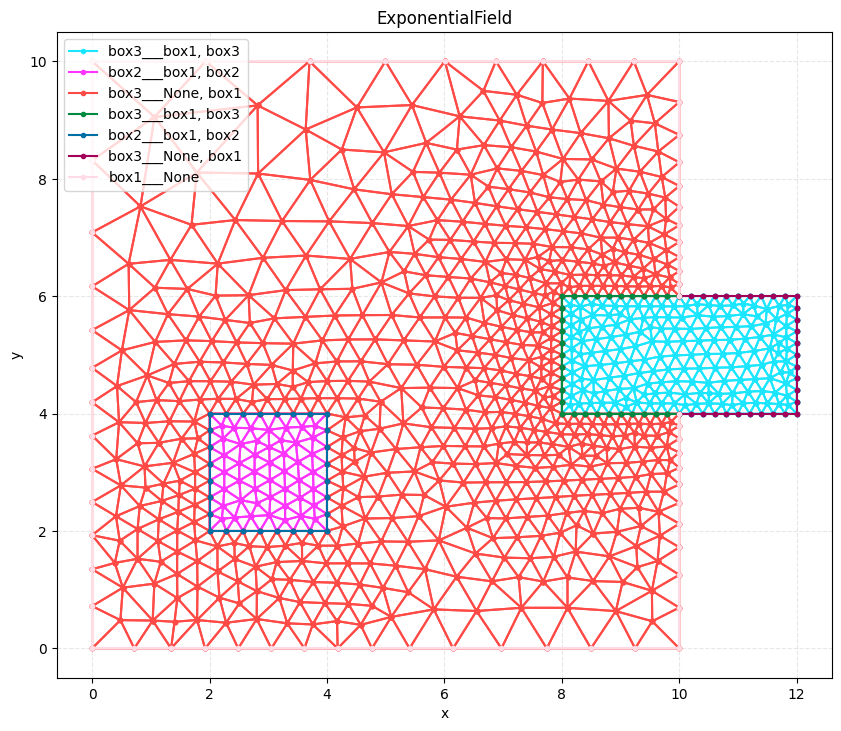

Exponential Resolution#
Creates a mesh with exponentially varying resolution based on distance from boundaries
output_mesh = mesh(
dim=2,
input_file="model.xao",
output_file="exponential_resolution.msh",
n_threads=1,
default_characteristic_length=2,
resolution_specs={
"box2": [
ExponentialField(
sizemin=0.3, lengthscale=2, growth_factor=2.0, apply_to="curves"
),
ConstantInField(resolution=0.3, apply_to="surfaces"),
],
"box3": [
ExponentialField(
sizemin=0.2, lengthscale=2, growth_factor=2.0, apply_to="curves"
),
],
},
)
plot2D(output_mesh, title="ExponentialField", wireframe=True)
# ## Background mesh
# It is also possible to pass a gmsh .pos file to fully parametrize the size field vs position. This is typically more useful once a physical solution has been calculated on an initial mesh, and a new size field has been calculated from the solution. Many solvers also have built-in remeshing, and hence only need an initial mesh before doing their own refinement
Info : Clearing all models and views...
Info : Done clearing all models and views
Info : Reading 'model.xao'...
Info : Done reading 'model.xao'
